X-Series for capping external fixator and large pins
|
JURGAN FIXATOR® BALL SET, Standard white 1/2" diameter balls for capping external fixators and traction pins. Includes screwdriver and four pin ball racks plus sterilizable polymer case |
|
| Catalog Number X300 |
| Cat |
|
|
Ball |
For Use with Wire/Pen Size |
| No. |
Qty. |
Description |
Diameter |
Inches |
MM |
| X300 |
1 |
Jurgan Fixator Ball® Set includes: |
|
|
|
| X003 |
1 rack |
(6 fixator balls per rack) |
3/8" |
7/64-1/8 |
3.0 |
| X004 |
1 rack |
(6 fixator balls per rack) |
1/2" |
9/64-5/32 |
4.0 |
| X005 |
1 rack |
(6 fixator balls per rack) |
1/2" |
3/16 |
5.0 |
| X006 |
1 rack |
(6 fixator balls per rack) |
1/2" |
1/4 |
6 |
| S200 |
1 |
Jurgan Screwdriver, Standard |
|
|
|
| X10 |
1 |
Jurgan Fixator Polymer Sterilization Case |
|
|
|
|
|
| Above sets may be filled in any combination of X series sizes upon request |
BB-Series for capping small kirshner wires between digits |

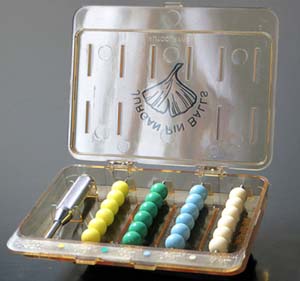

 JURGAN BABY PIN BALL® SET, Standard white or color coded 1/4" diameter balls for interdigital applications using small Kirschner wires. Includes screwdriver and four baby pin ball racks plus sterilizable polymer case. |
|
Catalog Number BB50 (white)
Catalog Number BB50-COL (color coded) |
| Cat |
|
|
Ball |
For Use with Wire/Pen Size |
| No. |
Qty. |
Description |
Diameter |
Inches |
MM |
| BB50 |
1 |
Jurgan Baby Pin Ball® Set includes |
|
|
|
| BB028 |
1 rack |
(6 Baby Pin Balls per Rack) |
1/4" |
0.028 |
0.7 |
| BB035 |
1 rack |
(6 Baby Pin Balls per Rack) |
1/4" |
0.035 |
0.9 |
| BB045 |
1 rack |
(6 Baby Pin Balls per Rack) |
1/4" |
0.045 |
1.1 |
| BB200 |
1 |
Jurgan Screwdriver, Small |
|
|
|
| BB10 |
1 |
Jurgan Polymer Sterilization Case |
|
|
|
|
|
| Above sets may be filled in any combination of BB series sizes upon request |
| BB50-COL for color choices see JURGAN REFILL RACKS-color CODED, BB-Series Pin Balls |
|
JURGAN PIN BALL® GENERAL SET, Standard white or color coded 3/8" diameter balls for capping various sized Kirschner wires. Includes screwdriver and four pin ball racks plus sterilizable polymer case
